RaceBox Mini | 25Hz GPS Laptimer & Drag meter

RaceBox Mini | 25Hz GPS Laptimer & Drag meter
Regular price €199,00
Regular price €229,00 Sale price €199,00
Sale Sold out
Tax included.

Availability : Only 17 left in stock!

  • Highest quality parts.
  • Shop now, pay later
  • Shipping in 1-2 business days.

RaceBox Mini is not a standalone device and requires a constant connection to your mobile phone to record data.
If that is what you need, check out RaceBox Mini S

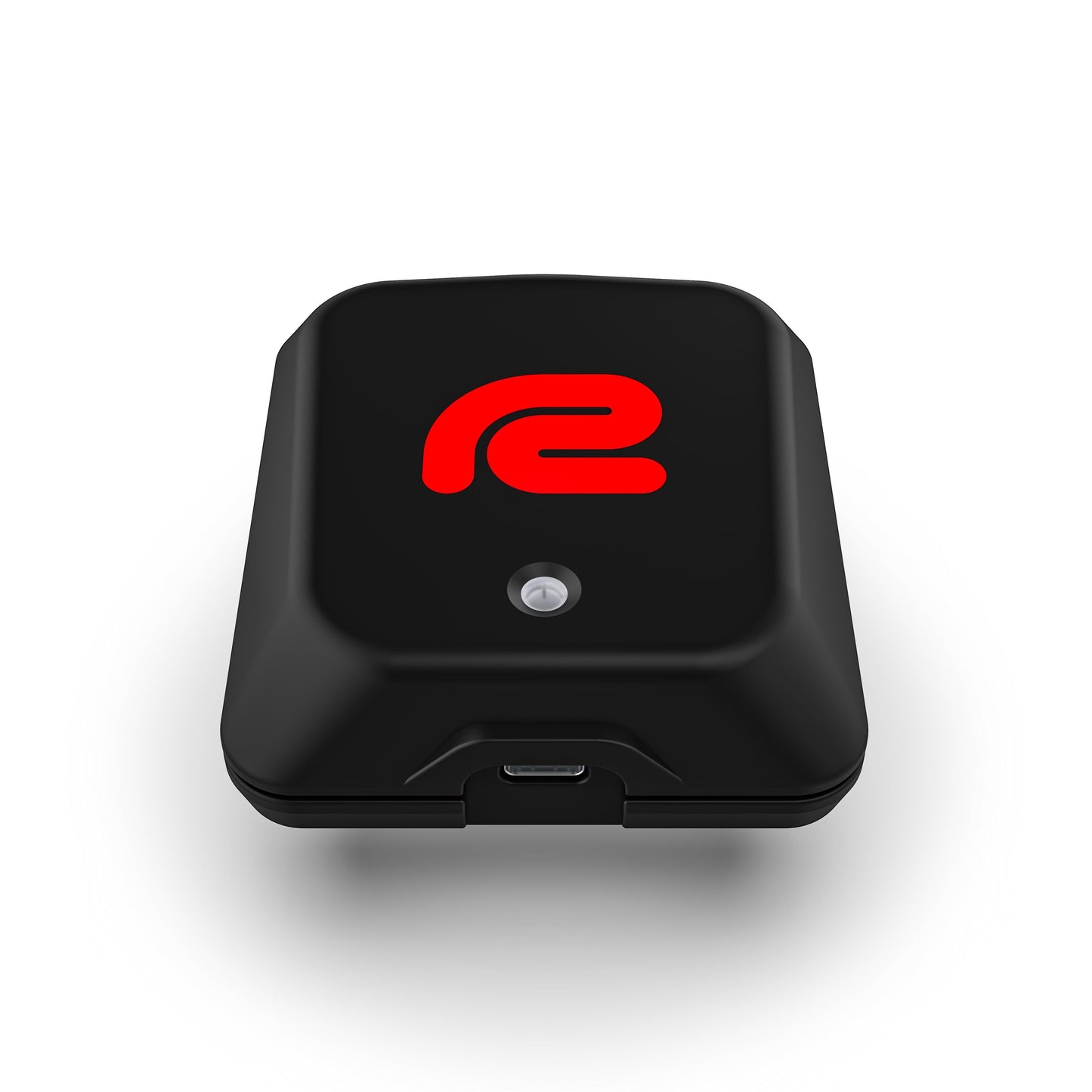

Introducing RaceBox Mini

The most cutting-edge and precise timing gadget you can buy for your vehicle, featuring, for the first time, a 25Hz GPS!
Support for any speed or distance drag discipline you can think of - 0-100km/h, 1/4 mile, stopping distance, standing or rolling starts. Or just measure laps around your favourite circuit, hill-climb or open track events.

If you are the occasional track-day enthusiast, a semi-professional or just want to see how fast you can go around the track, we've got you covered. The Lap Timer functionality will allow you to measure your laps and improve your skills without ever having to stop and check your results.

The Drag Meter functionality presents you with virtually unlimited possibilities to measure all of your car's performance stats. No matter if you want to see how fast it accelerates, covers a certain distance, or anything in between, you can measure it with RaceBox.

Packing latest generation 25Hz GPS with accuracy as low as 10cm (4 inch) gives over 99.5% measurement accuracy to a hundredth of a second, compared to official lap/drag timing equipment.

Heaps of exciting features to improve your driving like real-time result prediction, density altitude, bike lean angle, slope corrections, custom tracks, hill-climb mode, open-track mode, data comparison and more - see the full App description below.

Purpose-built hardware to match the needs of any vehicle - shock and splash resistant, multitude of mounting options, long battery life, integrated accelerometer and gyroscope just to name a few.

The technology

  • 25Hz GPS Module
    Simultaneous tracking of GPS, Glonass, Galileo, Beidou
  • Bluetooth 5.2
    Compatible with Android and iOS smartphones
  • 1100 mAh LiPo Battery
    Up to 20 hours of usage, one year on standby
  • USB Type C
    3 hours charging time
  • Splash Resistant
    Safe to use on water jets, boats or in the rain
  • Mounting via grip pad, hook'n'loop, magnets or 1/4"-20 UNC thread
  • High Precision Accelerometer
    +/- 8G range
  • High Precision Gyroscope
    +/- 320dps range
RaceBox Mini
  • Weight: 106 grams (3.7 oz.)
  • BLE: 5.2, certified down to 4.2. Up to 20 meters range
  • Battery: integrated 1100 mAh LiPo
  • Recommended charger: 0.5A USB Type-A. Most modern smartphone chargers should work
  • Charging port: USB Type-C
  • Charging time: less than 3 hours to 100% charged
  • Usage on battery: over 20 hours active, up to one year standby
  • Mounting compatibility: Integrated magnets and 1/4"-20UNC thread. Accessories include grip pad and hook'n'loop self-adhesive tape
  • GPS receiver: 25Hz GPS, GLONASS, Galileo, BeiDou and SBAS, -167dBm sensitivity with built-in 20dB gain antenna
  • Accelerometer: 1kHz internal sampling rate with +/- 8g scale and 0.001g sensitivity
  • Gyroscope: 1kHz sampling rate with +/- 320dps scale and 0.02 dps sensitivity
  • Environmental compatibility: -20 to 70°C (-4 to 158°F), splash resistant. Package includes optional dust cover for the charging port.

What's in the box

RaceBox Mini comes ready to mount and connect to your phone.

What's in the box
  • RaceBox Mini
  • Hardshell carry case
  • USB-C to USB-A charging cable
  • USB-C Water/Dust covers for extra protection
  • Hook'n'loop self-adhesive tape
  • Scratch-protect self-adhesive tape
  • High-grip temperature-resistant silicone pad
  • Quick-start guide

A wall adapter or car charger is NOT included in the box. Feel free to use any USB 2A charger.

The Mini also has four strong built-in magnets and a 1/4"-20 UNC threaded insert for additional mounting options.
