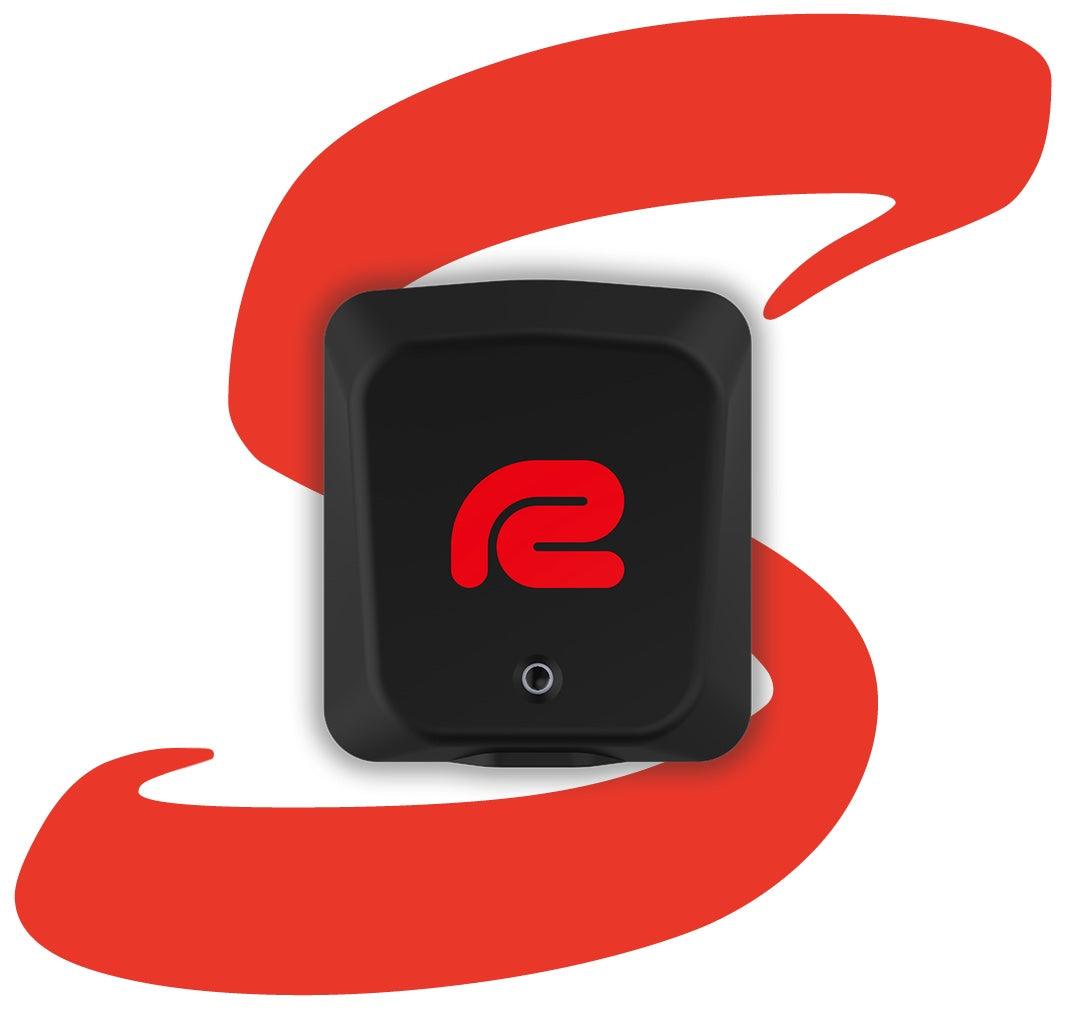

Introducing RaceBox Mini S

A first-of-its-kind device that seamlessly integrates storage capabilities with all the other features of the RaceBox Mini, allowing you to record sessions without requiring a constant Bluetooth connection.

If you are the occasional track-day enthusiast, a semi-professional, or just want to see how fast you can go around the track, we've got you covered. The Lap Timer functionality will allow you to measure your laps and improve your skills without ever having to stop and check your results.

The Drag Meter functionality presents you with virtually unlimited possibilities to measure all of your car's performance stats. No matter if you want to see how fast it accelerates, covers a certain distance, or anything in between, you can measure it with RaceBox.

Featuring built-in storage, the RaceBox Mini S provides you the ability to record lengthy sessions on its own. Effortlessly track your performance without concerns for space or mounting options for your phone. It can capture more than 2 hours of data at a 25Hz sampling rate or over 5 hours at 10Hz in its integrated storage.

Equipped with cutting-edge 25Hz GPS technology boasting precision as fine as 10cm (4 inches), this device delivers over 99.5% measurement accuracy to within a hundredth of a second, closely mirroring the results of official lap and drag timing equipment.

Heaps of exciting features to improve your driving like real-time result prediction, density altitude, bike lean angle, slope corrections, custom tracks, hill-climb mode, open-track mode, data comparison and more in the dedicated app.

All this is smoothly incorporated into a groundbreaking device that has the ability to record data without the need for constant connection to a mobile phone.

The technology

  • 25Hz GPS Module
    Simultaneous tracking of GPS, Glonass, Galileo, Beidou
  • Bluetooth 5.2
    Compatible with Android and iOS smartphones
  • 1100 mAh LiPo Battery
    Up to 20 hours of usage, one year on standby
  • USB Type C
    3 hours charging time
  • Splash Resistant
    Safe to use on water jets, boats or in the rain
  • High Precision Accelerometer
    +/- 8G range
  • High Precision Gyroscope
    +/- 320dps range
  • Internal storage for over 2 hours of data at 25Hz (5 hours at 10Hz)
RaceBox Mini
  • Weight: 106 grams (3.7 oz.)
  • BLE: 5.2, certified down to 4.2. Up to 20 meters range
  • Battery: integrated 1100 mAh LiPo
  • Recommended charger: 0.5A USB Type-A. Most modern smartphone chargers should work
  • Charging port: USB Type-C
  • Charging time: less than 3 hours to 100% charged
  • Usage on battery: over 20 hours active, up to one year standby
  • Mounting compatibility: Integrated magnets and 1/4"-20UNC thread. Accessories include grip pad and hook'n'loop self-adhesive tape
  • GPS receiver: 25Hz GPS, GLONASS, Galileo, BeiDou and SBAS, -167dBm sensitivity with built-in 20dB gain antenna
  • Accelerometer: 1kHz internal sampling rate with +/- 8g scale and 0.001g sensitivity
  • Gyroscope: 1kHz sampling rate with +/- 320dps scale and 0.02 dps sensitivity
  • Environmental compatibility: -20 to 70°C (-4 to 158°F), splash resistant. Package includes optional dust cover for the charging port.
  • Storage: 130 min @ 25Hz, 325 min @ 10Hz

What's in the box

RaceBox Mini S comes ready to mount and connect to your phone.

What's in the box
  • RaceBox Mini S
  • Hardshell carry case
  • USB-C to USB-A charging cable
  • USB-C Water/Dust covers for extra protection
  • Hook'n'loop self-adhesive tape
  • Scratch-protect self-adhesive tape
  • High-grip temperature-resistant silicone pad
  • Quick-start guide

A wall adapter or car charger is NOT included in the box. Feel free to use any USB 2A charger.

The Mini S also has four strong built-in magnets and a 1/4"-20 UNC threaded insert for additional mounting options.
