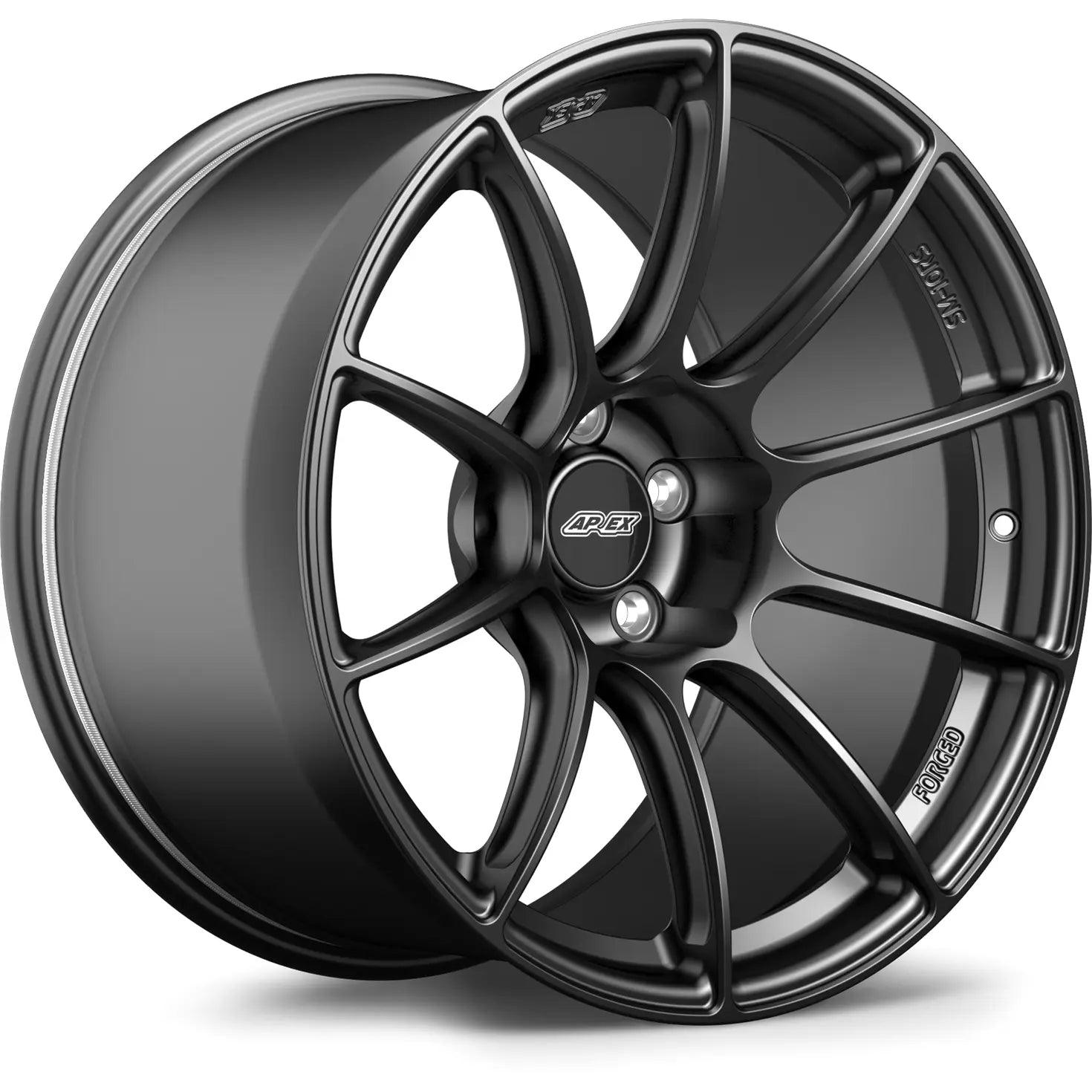

Despite being the most powerful and arguably capable M3 out of the box, the G80 M3 wheels were an interesting array of double-staggered fitments from the factory. For owners looking to maximize the overall performance of their new M3 or simplify away from the overly complex factory wheels and tires, lightweight performance wheels are an excellent initial upgrade. Apex created wheels like the forged VS-5RS and SM-10RS to give owners xDrive and RWD compatible fitments that also increase performance.
This set follows the original dimensions of the stock Competition wheels (19" front, 20" rear). You can run tires up to 285 front and 295 rear on these wheels. If you need another size wheel, please contact us directly for availability and pricing.
| Front | Rear | |
| Wheel Size | 19x10" ET12 | 20x11" ET18 |
| Face Profile | Profile 4 | Profile 4 |
| Bolt Pattern | 5x112mm | 5x112mm |
| Center Bore | 66.6mm | 66.6mm |
| Lug Seat | 60 Degree Conical | 60 Degree Conical |
| Center Cap | Gloss Black | Gloss Black |
| OEM Cap | Compatible | Compatible |
| Load Rating | 1,600 lbs | 1,600 lbs |
| Weight | ~9,2 kg | ~9,5 kg |

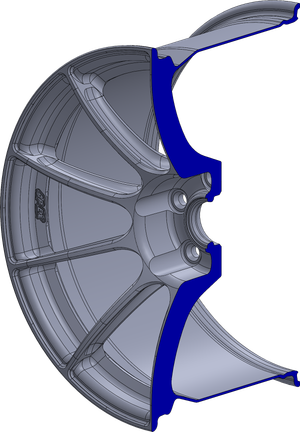

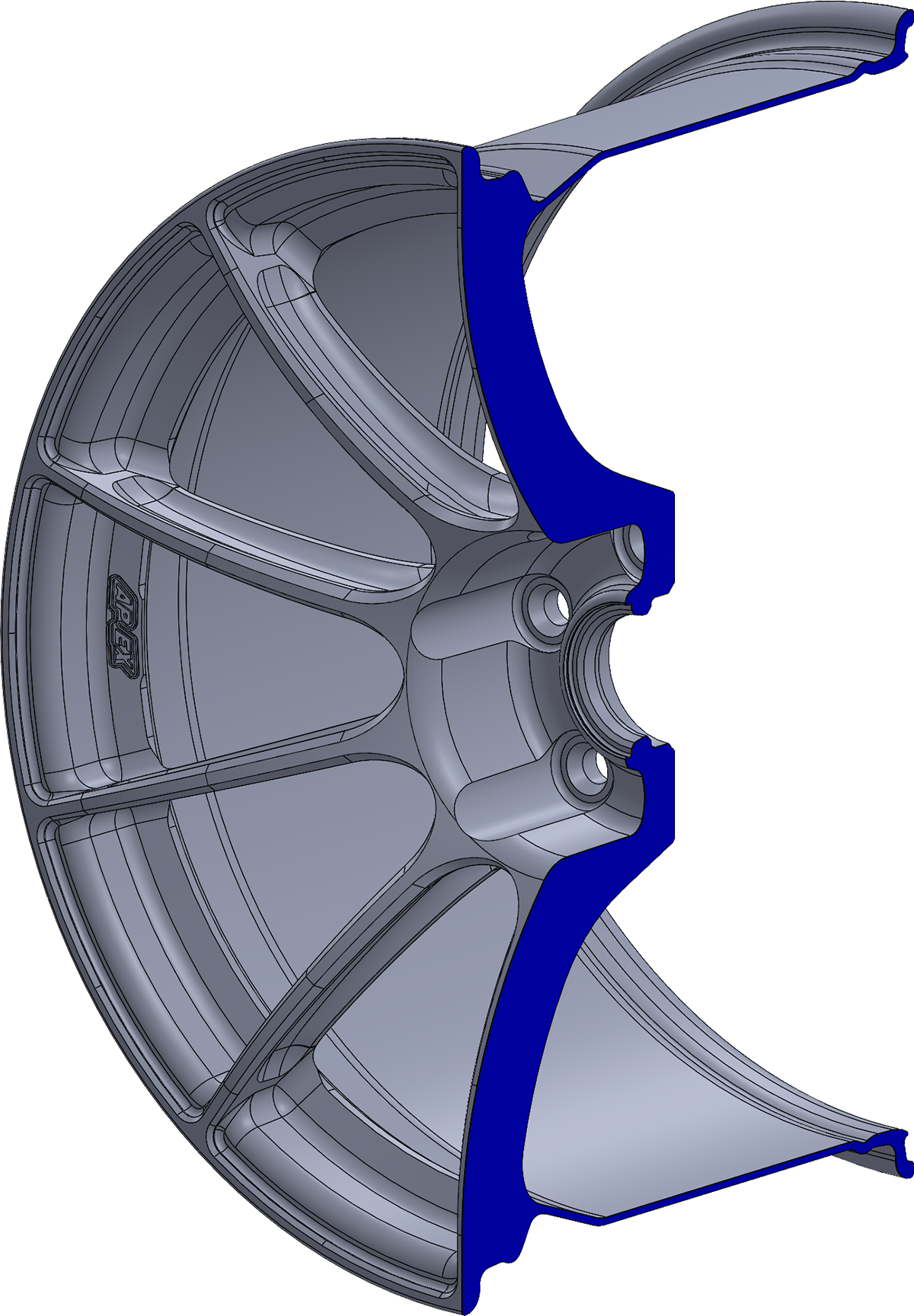

To be as light as possible the VS-5RS features extra-deep, side-milled spokes. Any excess material that doesn’t add strength is carved out using a precision CNC ball cutter. Side-milling is often deemed cost-prohibitive by others, but for true performance without compromise APEX believes it's essential.
From day one, APEX has been on a mission to build wheels that clear big brakes. Their new forged wheels are the product of everything they've developed over the past 10+ years, including an innovative high-clearance barrel design and vehicle-specific spoke profiles.
All APEX wheels accept OEM and aftermarket Tire Pressure Monitoring Sensors and standard fit valve stems.

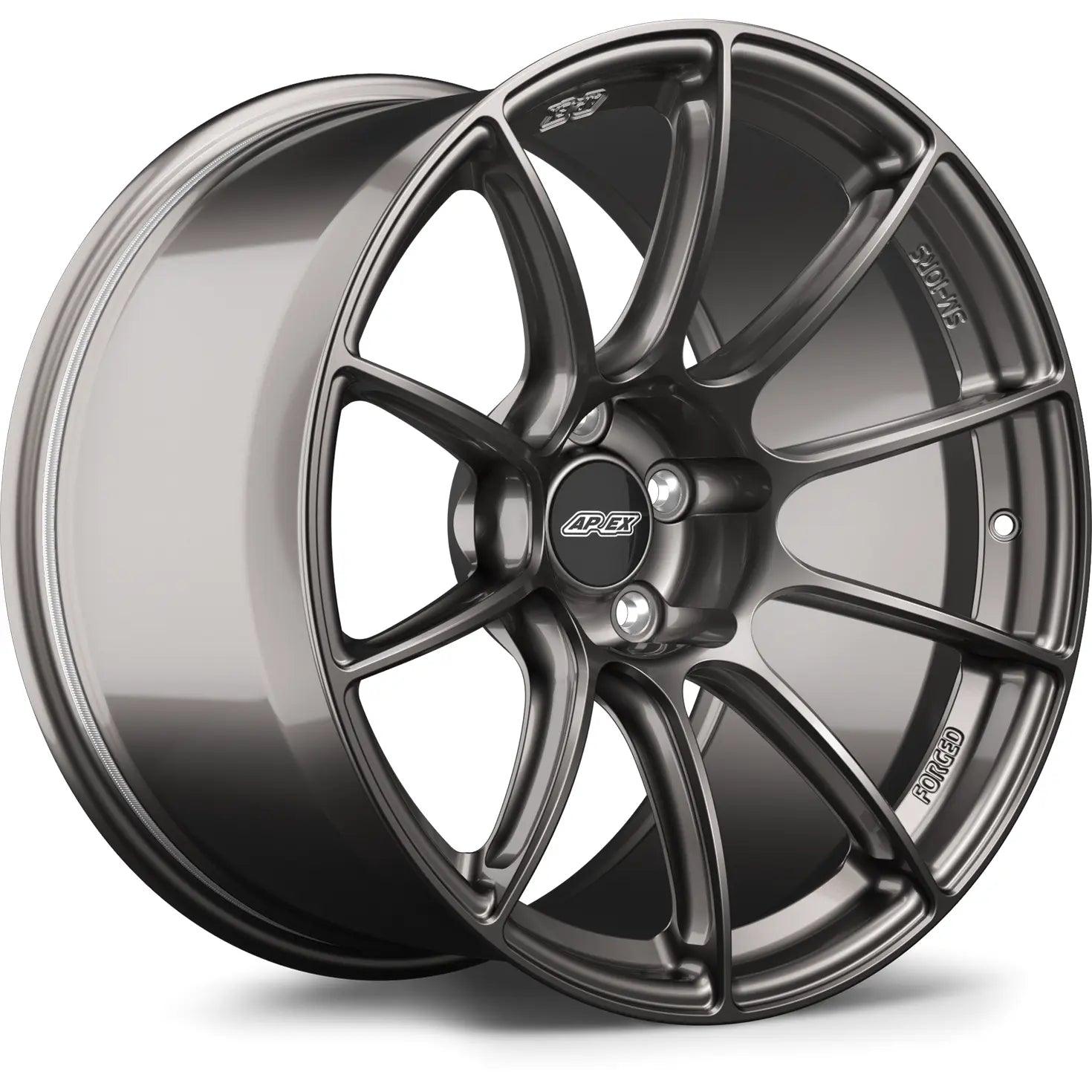

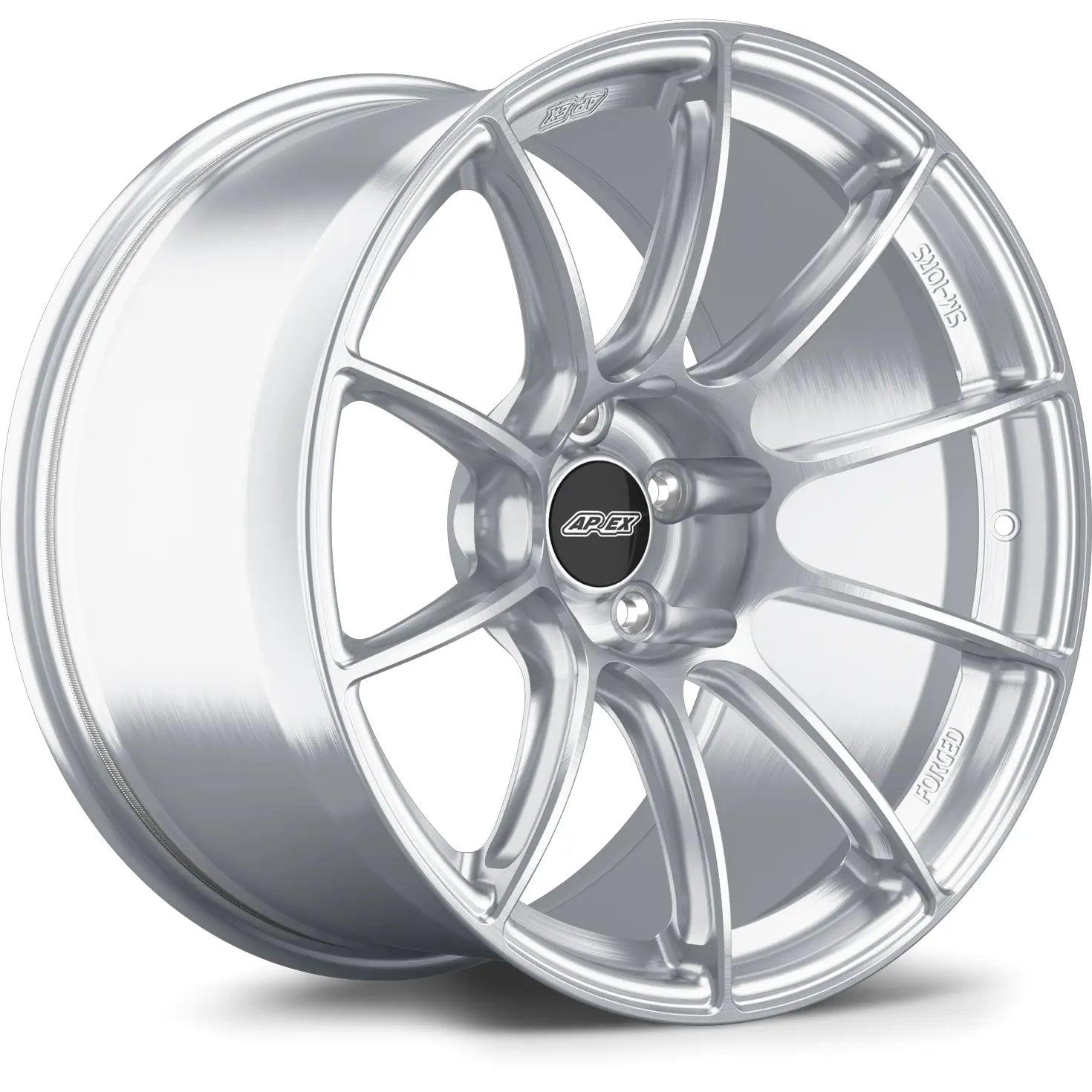

| Color |
Brushed Clear, Satin Black, Anthracite |
|---|
